E6 1/4" DIAPHRAGM PUMP 요약정보 및 구매

판매가격 전화문의
배송비결제 주문시 결제

상품 정보

상품 상세설명

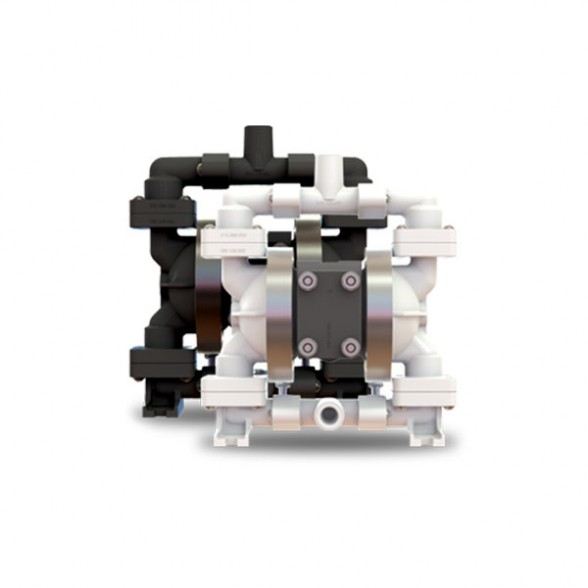

E6 1/4" PumpsGet reliable performance with the non-stalling, lube-free air valve system in Versa-Matic's E6 1/4” pump. Leak-free design reduces downtime, ensuring continuous, reliable pump performance.

The E6 1/4" Pump...

  • is self-priming
  • male and female threaded manifolds
  • provides an integrated muffler
  • offers 90 degree manifold configurations

Download information from our literature page

Performance Chart


Specifications

 EnglishMetric
Flow Rate
adjustable to0-4 gpm0-15 lpm
Port Size
Inlet and Outlet0.25" NPTF I.D.
 0.50" NPTM O.D.
Air Inlet0.25" NPTF
Air Exhaust0.75" NPTF
Suction Lift
5.83' Dry/25.5' Wet (1.78m/777m)
Max. Particle Size
(Diameter)0.3125"1mm
Shipping Weights
Polypropylene3.38 lbs1.53 kg
PVDF4.13 lbs1.87 kg
Groundable Acetal5.00 lbs2.27 kg
