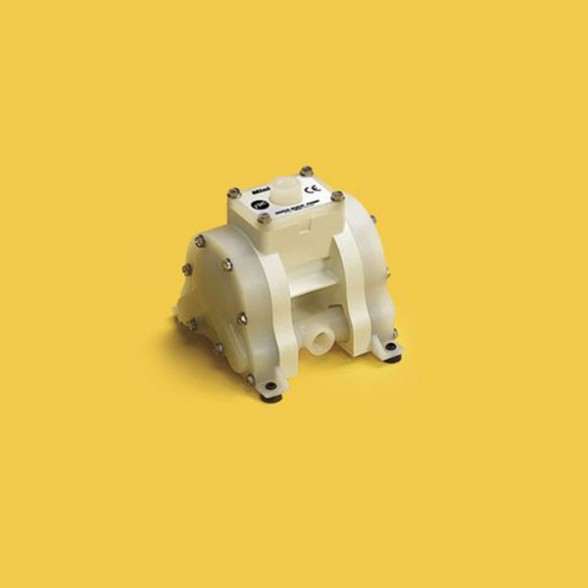

E8 3/8" Mini-Matic™ Pumps

Versa-Matic® provides maximum performance in a mini package with our E8 3/8" pumps. Small enough to fit in your hand, yet capable of pumping up to 6.8 gallons per minute, these pumps can be mounted upright, sideways, and even inverted to adapt to your application. They also feature our patented Elima-Matic®® Air Valve System to deliver non-stalling, non-icing, lube-free operation as well as the elimination of blow-by. E8 pumps are available in Polypropylene and Kynar® wetted materials of construction, with XL (Santoprene®), Geolast® or PTFE interiors.

Download information from our literature page

Performance Chart


Caution: Do not exceed 100 psig (6.8 bars) air supply or liquid pressure.


Specifications

 EnglishMetric
Flow Rate
adjustable to0-6.8 gpm0-26 lpm
Port Size
Inlet and Outlet3/8" NPTF (BSP)
Air Inlet0.25" NPTF
Air Exhaust0.25" NPTF
Suction Lift
Dry11'3.4m
PTFE Dry11'3.4m
Max. Particle Size
Diameter0.10"2.5mm
Shipping Weights
Polypropylene3.0 lbs1.4 kg
Kynar3.0 lbs1.4 kg
