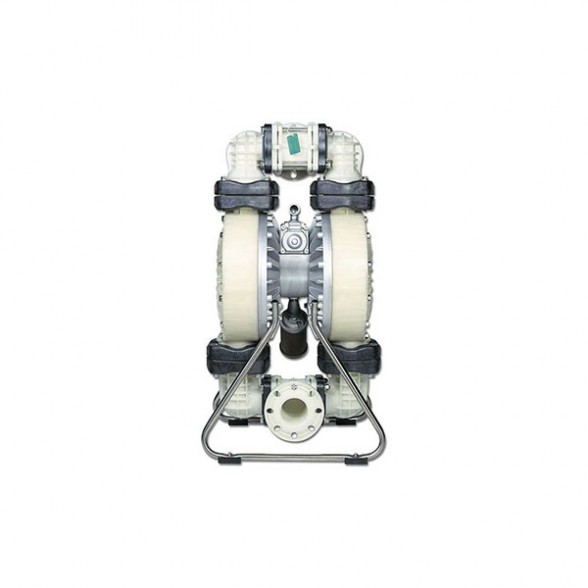

Yamada® NDP-80 Series Double Diaphragm Pump 요약정보 및 구매

판매가격	전화문의
배송비결제	주문시 결제

위시리스트

상품 정보

상품정보
사용후기 0
상품문의 0
배송정보
교환정보

상품 상세설명

NDP-50 Aluminum, ANSI Flange

Dimensions: 17.68" W x 30.67" H
Net Weight: 88 lbs. (39.9 kg)
Shipping Weight: 99 lbs.

NDP-50 Cast Iron, ANSI Flange

Dimensions: 17.72" W x 30.55" H
Net Weight: 159 lbs. (72.1 kg)
Shipping Weight: 168 lbs.

NDP-50 Cast Iron, NPT

Dimensions: 17.72" W x 30.55" H
Net Weight: 159 lbs. (72.1 kg)
Shipping Weight: 168 lbs.

NDP-50 Kynar, ANSI Flange

Dimensions: 18.63" W x 32.32" H
Net Weight: 103 lbs. (46.7 kg)
Shipping Weight: 121 lbs.

NDP-50 Polypropylene, ANSI Flange

Dimensions: 18.63" W x 32.32" H
Net Weight: 84 lbs. (38.1 kg)
Shipping Weight: 108 lbs.

NDP-50 Stainless Steel, ANSI Flange

Dimensions: 17.72" W x 30.55" H
Net Weight: 162 lbs. (73.5 kg)
Shipping Weight: 173 lbs.

NDP-50 Stainless Steel, NPT

Dimensions: 17.72" W x 30.55" H
Net Weight: 162 lbs. (73.5 kg)
Shipping Weight: 173 lbs.

Yamada^® NDP-80 series Air Powered Double Diaphragm (AODD) pumps provide a maximum flow rate of 214 gallons per minute. Pumps are available in aluminum, stainless steel (316), Kynar^® (PVDF), groundable acetal, and polypropylene construction.

What separates Yamada from the rest of the pack is our air valve technology. Yamada uses a completely non-lubricated main air valve and independent pilot mechanisms to control the air logic.

As compressed air enters the pump, it is directed via the main air valve to one side or the other, depending upon the starting position of the c-spool. As the air enters the chamber, it forces the diaphragm outward. This outward momentum forces liquid out of the discharge ball valve and loads the opposite inlet ball valve. As the diaphragm travels outward, the connected diaphragm on the opposite side is pulling the diaphragm inward.

When it travels a full stroke, it will contact the pilot valve, depressing it and breaking the seal to open an exhaust port.

The open port allows the compressed air to the exhaust from the back side of the air valve. The pressure drop produces a shift of the main air valve. This motion simply repeats on the other side.

ACCESSORIES

Air Motor Kit	K80-AM
Liquid End Kits	Aluminum: K80-MC, K80-MN, K80-ME, K80-MH, K80-MS, K80-MV, K80-MT Stainless Steel: K80-MC, K80-MN, K80-ME, K80-MH, K80-MS, K80-MV, K80-MT Cast Iron: K80-MC, K80-MN, K80-ME, K80-MH, K80-MS, K80-MV, K80-MT Polypropylene: K80-PC, K80-PN, K80-PE, K80-PH, K80-PS, K80-PV, K80-PT
Filter / Regulators	FR-5 and FR-5A (Auto Drain)
Dampener	AD-50 Series
Liquid Level Controller	LLC-2Y, LLC-1 and LLC-1010
Controllers	YSC-3EX and YSC-Batch
Diaphragm Monitor System	DM-2
DRy Run Detector	DRD-100

The Yamada Advantage

Yamada Air Powered Double Diaphragm Pumps: Engineered for High Performance. Manufactured for Long Life.

Rugged, Bolted Construction

All Yamada pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly. Bolted construction is superior to clamp band retainers, which frequently require frustrating, unnecessary leakage rebuilds from misalignment during reassembly.

Patented Air Valve Technology

Incorporated in every Yamada Air Powered Double Diaphragm pump

Yamada air valve technology is the heart of the air-powered double diaphragm pump and determines reliability. Yamada holds three patents on its field proven valve and enjoys a superior reputation throughout the industry.

Why Specify an AODD Pump?

Handles a wide variety of fluids with high solids content
Self priming
Ability to run dry
Variable flow rate and discharge pressure
Portable/simple installation
Dead head
Shear sensitive
Safe operation
Submersible
Pumping efficiency remains constant
