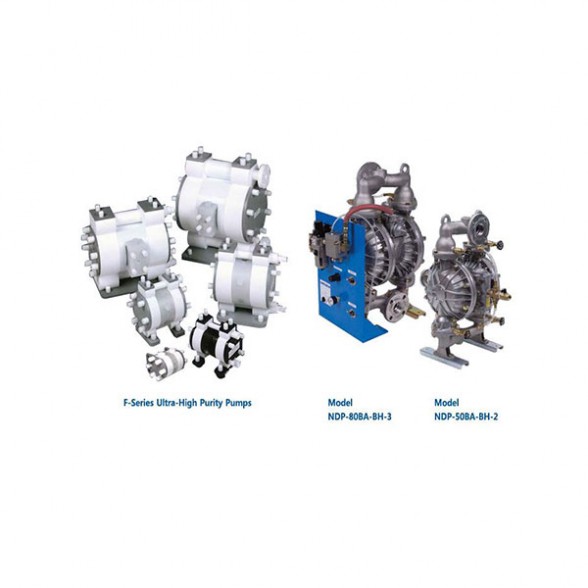

The DP-F Series pump range offers 5 different sized models of clean room menufactured process pumps suitable for high purity and corrosive applications. Utilizing the patented Yamada C-Spool these pumps are simple and easily installed into a process system.
DP-5F
DP-10F
DP-20F
 |  |
| DP-25F | DP-38F |
| Model name | DP-5F※1 | DP-10F | DP-20F | DP-25F ※2 | DP-38F ※2 | ||||||||||||||||||||||||||||||||||||
| Nominal port size | 1/4″(8A) | 3/8″（10A） | 3/4″（20A） | 1″（25A） | 1″（25A） | ||||||||||||||||||||||||||||||||||||
Connection to liquid | Inlet | Rc1/4（F） | Rc3/8（F） ※3 | JIS 10A flange or equivalent | Rc3/4（F） ※3 | JIS 20A flange or equivalent | JIS 25A flange or equivalent | ||||||||||||||||||||||||||||||||||
| Outlet | |||||||||||||||||||||||||||||||||||||||||
エア接続※5 | Inlet （エアコック付） | Rc1/4（F） | Rc3/8（F） | Rc1/2（F） | |||||||||||||||||||||||||||||||||||||
| Exhaust | Rc3/8（F） (silencer contained) | Rc3/8（F） (silencer contained) | Rc3/4（F） (silencer contained) | ||||||||||||||||||||||||||||||||||||||
Material | Wetted body | Fluoric resin （PTFE，PFA） | |||||||||||||||||||||||||||||||||||||||
| Diaphragm, Valve, Seat | Fluoric resin （PTFE） | ||||||||||||||||||||||||||||||||||||||||
| Non Wetted body | PPS resin | Polypropylene （PP） | High-density polyethylene （HDPE） | ||||||||||||||||||||||||||||||||||||||
| Air supply pressure range | 0.2～0.5MPa | 0.2～0.7MPa | |||||||||||||||||||||||||||||||||||||||
Max discharge pressure | 0.5MPa | 0.7MPa | |||||||||||||||||||||||||||||||||||||||
Discharge volume/cycle※4 | 13ｍL | 65ｍL | 150ｍL | 300ｍL | 700ｍL | ||||||||||||||||||||||||||||||||||||
| Max discharge volume※6 | 11L/min | 27L/min | 54L/min | 64L/min | 95L/min | ||||||||||||||||||||||||||||||||||||
| Max air consumption | 170 L/min(ANR) | 250 L/min(ANR) | 350 L/min(ANR) | 900 L/min(ANR) | 1500 L/min(ANR) | ||||||||||||||||||||||||||||||||||||
| Max slurry diameter※7 | ― | 1mm or smaller | 2mm or smaller | 3mm or smaller | |||||||||||||||||||||||||||||||||||||
Viscosity limit | 0.5Pa-s or lower | 1Pa-s or lower | 2Pa-s or lower | 2.5Pa-s or lower | |||||||||||||||||||||||||||||||||||||
Environmental | Ambient | 0～70℃ | |||||||||||||||||||||||||||||||||||||||
Liquid | 0～80℃ | ||||||||||||||||||||||||||||||||||||||||
| Noise level | 71ｄB | 82ｄB | 85ｄB | 88ｄB | 90ｄB | ||||||||||||||||||||||||||||||||||||
Weight | 3.4ｋｇ | 6.7ｋｇ | 7.2ｋｇ | 14.6ｋｇ | 15.5ｋｇ | 32ｋｇ | 52ｋｇ | ||||||||||||||||||||||||||||||||||
※1：The DP-5F valve is a flat (plate) type.
※2：Since a DP-25F and a DP-38F are to be produced on orders, be sure to check the delivery date.
※3：The suction inlet or discharge outlet of a DP-10F/20F pump can be connected with an NPT screw orANSI flange (custom-designed) as well as a standard RC screw or flange.
※4：The maximum discharged liquid amount and/or self-suction capability are based on the test datameasured with using fresh water at the room temperature (20oC). In addition, the amount of dis-charged liquid varies depending on the supplied air pressure or pump head. Please check the per-formance curve for details.
※5：Use the clean air that has passed through a 1-μm filter or nitrogen gas (N2) as air to be supplied tothe pump.
＊When you use a resin pump, it may not offer the designed performance due to significant change oftemperature. To maintain its performance, be careful to install the pump or store its parts.
＊Any flat valve type of pumps cannot handle slurry.
Valve type | Connection | ||
Pump size | Screw（PT） | Flange | |
Ball | 5 | ― | ― |
10 | |||
20 | |||
25 | ― | ||
38 | ― | ||
Flat | 5 | ― | |
10 | |||
20 | |||
25 | ― | ||
38 | ― | ||
 Dimensions （PDF) |
|
| DP-5F | DP-5F、FH |
| DP-5FH | |
| DP-10F(Rc) | DP-10F |
| DP-10F(Flange) | |
| DP-20F(Rc) | DP-20F |
| DP-20F(Flange) | |
| DP-25F | DP-25F |
| DP-38F | DP-38F |
| Model | Operation manual (PDF) | Maintenance manual (PDF) |  CAD data （DXF） |
DP-5F | NDP 209U-09 | NDP 032M-13 | DP-5F(PT) |
DP-5FH | |||
| DP-10F | DP-10F(PT) DP-10F(FL) | ||
| DP-20F | DP-20F(PT) DP-20F(FL) | ||
| DP-25F | DP-25F(FL) | ||
| DP-38F | DP-38F(FL) |
