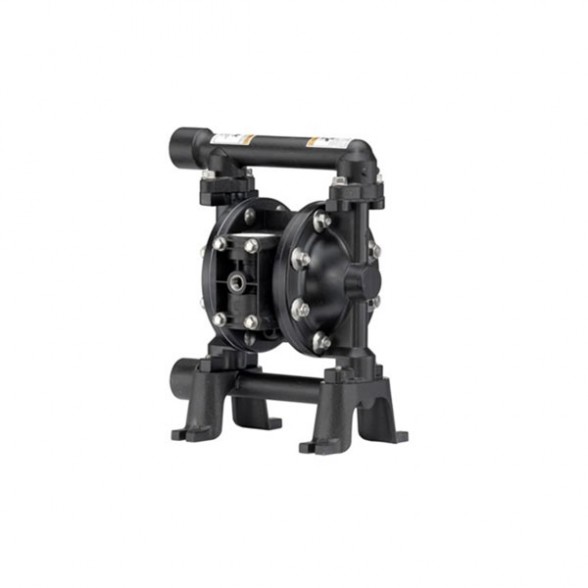

3/4" Metallic
PD07R-XXS-XXX
Maximum Flow gpm (lpm): 13.6 (51.5)
Maximum Discharge Pressure psi (bar): 100 (6.9)
Fluid Ports Inlet/Outlet (bsp):
3/4 - 14 N.P.T.F.-2
Rp 3/4(3/4-14BSP, parallel)
Material of Construction: Aluminum
Maximum Solids in (mm): 3/32 (2.4)
Maximum Dry Suction Lift ft (m): 15 (4.5)
Part of our Compact Series of pumps our 3/4” metallic pumps feature big performance in a small package. They achieve flow rates up to 14.8 GPM (56 LPM) and offer a wide range of material and porting configurations.
Features
- Designed to meet your OEM application needs.
- Install directly onto your 3/4" application, saving you a fitting and a possible leak point.
- Efficiency - Simul-Shift™ valve provides ultra-positive, reliable shift signal
- Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation
- Versatility - Compact design enables usage in limited space and other versatile locations
- Environmentally Sound - Bolted construction for leak-free fluid handling
- Serviceability - Easier service through modular design
Accessories
- 66073-1 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose
- 637438 Threaded Exhaust Kit
- 93110 Air Motor Muffler
- 76763 Wall Mount Bracket
- 637428 Air Section Service Kit
- 637427-XX Fluid Section Service Kit
Pump Casing Material
- Aluminum
Diaphragm Materials
- Santoprene
- Hytrel
- PTFE
Ratio: 1:1
Maximum Flow: 13.6-g.p.m. (51.5-l.p.m.)
Displacement per cycle: 0.030-Gallons (0.11-Liters)
Air Inlet: (Female) 1/4 - 18 P.T.F. SAE Short
Fluid Inlet/Outlet:
3/4 - 14 N.P.T.F.-2
Rp 3/4 (3/4 -14 BSP, parallel)
Max. operating pressure: 100-psi (6.9-bar)
Suspended solids max. dia.: 3/32” (2.4-mm)
Weight: lbs (kg)
PX07R 8.74 (3.96)
PX07A 11.0 (4.99)
Maximum dry suction lift: ft (m) 15 (4.5)
Sound Level: 70 PSI 60 Cycles/Min 75 db(A)
