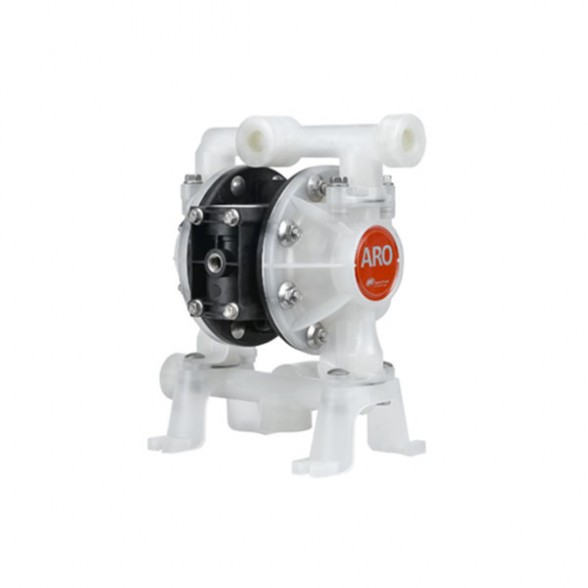

1/2" Non-Metallic
PD05P-XXS-XXX-B
Maximum Flow gpm (lpm): 14.4 (54.5)
Maximum Discharge Pressure psi (bar): 100 (6.8)
Fluid Ports Inlet/Outlet (bsp): 1/2" (F) - In/Out
Material of Construction: Polypropylene, Groundable, Acetal, PVDF
Maximum Solids in (mm): 3/32 (2.4)
Maximum Dry Suction Lift ft (m): 15 (4.5)
Part of our Compact Series of pumps, our 1/2” compact pumps feature big performance in a small package. They offer flow rates up to 14.4 GPM (54.5 LPM) and a wide range of material and porting configurations.
Features
- ARO has the 1/2" ported diaphragm pump.
- Designed to meet your OEM application needs.
- Manufactured for complete corrosion resistance - constructed with polypropylene center body, standard stainless steel fasteners, and your choice of Groundable Acetal, PVDF (Kynar) or Polypropylene casing materials
- Efficiency - Simul-Shift™ valve provides ultra-positive, reliable shift signal
- Reliability - ARO's patented 'Unbalanced' air valve ensures no-stall operation
- Versatility - Center, End, and Dual Inlet / Outlet manifold configurations for your application needs
- Environmentally Sound - Bolted construction for leak-free fluid handling
- Serviceability - Ease of service through modular design
Accessories
- 66073-1 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose
- 637438 Threaded Exhaust Kit
- 76763 Wall Mount Bracket
- 93110 Air Motor Muffler
- 637440-X Dual Inlet / Outlet Kit
- 67165-X Cycle Actuation Kit
- 637428 Air Section Service Kit
- 637427-XX Fluid Section Service Kit
Pump Casing Materials
- Polypropylene
- PVDF (Kynar)
- Groundable Acetal
Diaphragm Material
- Santoprene
- Hytrel
- Nitrile
- PTFE w/ Santoprene backer
- Polyurethane
- Viton
Ratio: 1:1
Maximum Flow: 14.4 g.p.m. (54.5 l.p.m.)
Displacement per cycle: 0.039 Gallons (0.15 Liters)
Air Inlet: (Female) 1/4 - 18 P.T.F. SAE Short
Fluid Inlet/Outlet:
1/2 - 14 N.P.T.F. - 1
Rp 1/2 (1/2 -14 BSP, parallel)
Max. operating pressure: 100 psi (6.9 bar)
Suspended solids max. dia.: 3/32” (2.4 mm)
Weight: lbs (kg)
PD05P-XDS-XXX-B 6.3 (2.9)
PD05P-XES-XXX-B 6.7 (3.0)
PD05P-XKS-XXX-B 6.8 (3.1)
PD05P-XLS-XXX-B 7.2 (3.3)
PD05P-XPS-XXX-B 5.2 (2.4)
PD05P-XRS-XXX-B 5.4 (2.5)
Maximum dry suction lift: ft (m) 15.0 (4.5)
Sound Level: 70 PSI 60 Cycles/Min 75.0 db(A)
Muffler: Integral, Included
