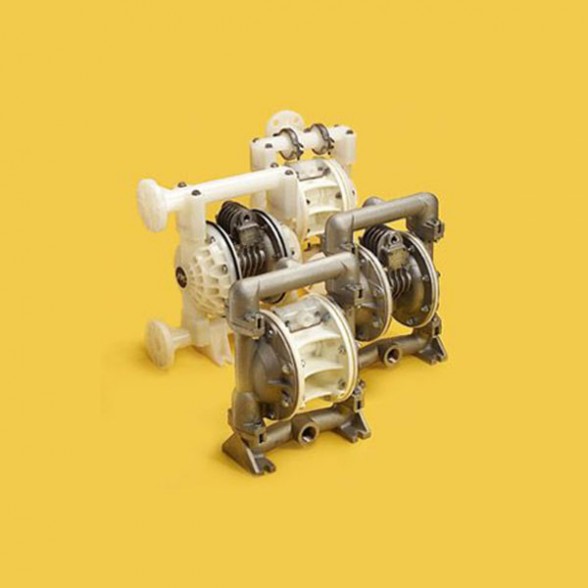

E1 1" Pumps

Versa-Matic's E1 1" pump uses the Elima-Matic air valve system to provide non-stalling, lube-free performance. The E1 1" plastic bolted pump comes in optional and standard porting models, and offers a flow rate of 0-125 lpm.

The E1 1" Pump...

  • is available in either plastic or metal
  • supplies a corrosion-resistant air section
  • provides multiple porting options
  • is self-priming
  • offers center port and split manifolds on plastic bolted pumps
  • offers UL listed models on bolted metallic pumps

Download information from our literature page


specifications

 EnglishMetric
Flow Rate
adjustable to0-35 gpm0-132 lpm
Port Size
Inlet1.0" Female NPT (BSP)
Discharge1.0" Female NPT (BSP)
Inlet1.0" ANSI/DIN Flanged
Discharge1.0" ANSI/DIN Flanged
Air Inlet0.375" NPTF
Air Exhaust0.50" NPT
Suction Lift
15' Dry/25' Wet (4.57m/7.62m)
PTFE: 10' Dry/20' Wet (3.05m/6.10m)
Max. Particle Size
(Diameter)0.125"3.17mm
Shipping Weight
Aluminum31 lbs14.07 kg
Stainless42 lbs19.05 kg
Hastelloy C42 lbs19.05 kg
Polypropylene24 lbs10.9 kg
Kynar®24 lbs10.9 kg
