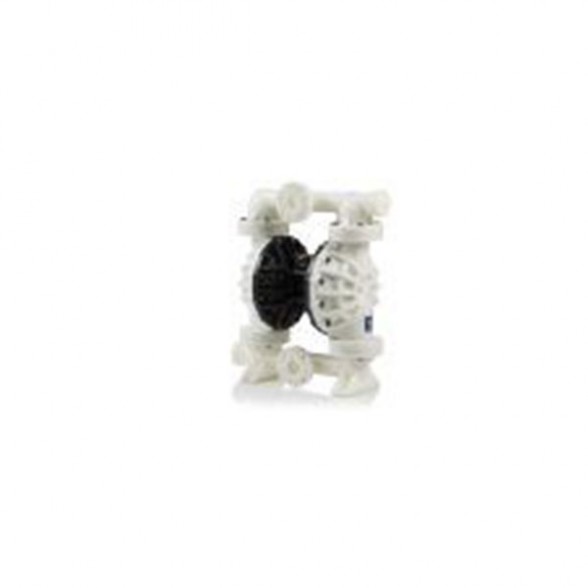

Husky 2200 Air-Operated Diaphragm Pumps 2 inch Positive Displacement Double Diaphragm Pump
The Husky 2200 has a 2 inch (50.8 mm) connection and is available in polypropylene and PVDF.
이미지
The Husky 2200 air-operated diaphragm pump features a single piece polypropylene center section for increased reliability and chemical compatibility, plus a patented, high-reliability modular air valve that is online serviceable.
This diaphragm pump is designed with a reinforced frame for improved reliability and will help to eliminate fluid leakage.
Benefits of the Husky 2200 double diaphragm pumps
- Overall improved air efficiency
- Highest fluid flow rate in its class
- Expanded material offering to handle endless applications
- Available with Overmolded diaphragms (up to 5 times longer diaphragm life)
Benefits of the Husky 2200 Air Valve
- Increased Efficiency: Stall-free, low pulsation design provides smooth and rapid changeover for increased efficiency and minimized down time.
- Modular 4 bolt design: The air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump.
- Fewer parts: The complete air valve is externally accessible with minimal parts so it can be serviced faster than industry peer air valves.
| Overview | |
| Maximum fluid flow | 200 gpm (757 l/min) |
| Maximum Fluid Discharge Pressure | 125 psi (8.6 bar, 0.86 MPa) |
| Maximum size pumpable solids | 3/8 in (9.5 mm) |
| Fluid displacement per cycle | 1.6 g (6.1 liters) |
Husky 2200 Performance
Looking for a repair kit? Use our pump configuration tools to select the repair kit for your pump:
- Step 1 – Go to our Pump Selector Tool
- Step 2 – Fill in your pumps part number in the right corner
- Step 3 – Get an overview of all repair kits and accessories for your pump.
