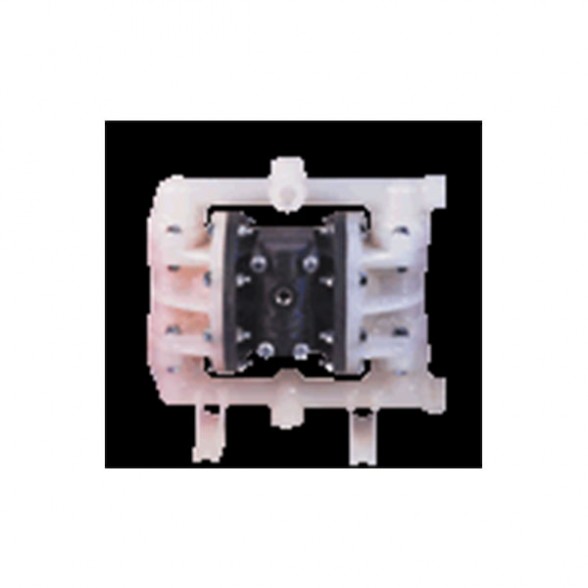

3/4” A075 Polypropylene
Up to 17 GPM
Elastomer Available in: Geolast®, Santoprene®, PTFE, Viton
Liquid Connections Available in: FNPT, FBSPT
Max Solids: 1/8 Inch (3.2mm)
Max Suction Lift (Dry): 15ft-H20 (4.5m)
Max Suction Lift (Wet): 26ft-H20 (7.9m)
Air Inlet: ¼ Inch FNPT
![]()
3/4” A075 Polypropylene
| Part No. | Fluid End | Air End | Diaphragms | Valve/Ball | Valve Seats | O-Rings | Connection Type | Fluid Porting |
|---|---|---|---|---|---|---|---|---|
| A075-NPP-GNPN-S70 | PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. | Polypropylene (Glass filled)Polypropylene (Glass filled) | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. | NitrileGeneral purpose elastomer used on water and most non synthetic oils. | NPT | Suction Right/Discharge Right (NPT/BSP Only)Suction Right/Discharge Right (NPT/BSP Only) |
| A075-NPP-SSPE-Y70 | PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. | Polypropylene (Glass filled)Polypropylene (Glass filled) | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. | EPDMGeneral purpose elastomer with good resistance to many acids and basis. | NPT | Suction Left/ Discharge Left (NPT/BSP Only)Suction Left/ Discharge Left (NPT/BSP Only) |
| A075-NPP-TTPT-S70 | PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. | Polypropylene (Glass filled)Polypropylene (Glass filled) | PTFEThermoplastic material that is inert to most chemicals. | PTFEThermoplastic material that is inert to most chemicals. | PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. | PTFEThermoplastic material that is inert to most chemicals. | NPT | Suction Right/Discharge Right (NPT/BSP Only)Suction Right/Discharge Right (NPT/BSP Only) |
| A075-NPP-VVPV-S70 | PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. | Polypropylene (Glass filled)Polypropylene (Glass filled) | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | PolypropyleneA non-metallic material, suitable for water, caustics, soap solutions, mild acids and general purpose applications. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | NPT | Suction Right/Discharge Right (NPT/BSP Only) |
3/4” A075 PVDF
Up to 17 GPM
Elastomer Available in: Santoprene®, PTFE, Viton
Liquid Connections Available in: FNPT
Max Solids: 1/8 Inch (3.2mm)
Max Suction Lift (Dry): 15ft-H20 (4.5m)
Max Suction Lift (Wet): 26ft-H20 (7.9m)
Air Inlet: ¼ Inch FNPT
![]()
3/4” A075 PVDF
| Part No. | Fluid End | Air End | Diaphragms | Valve/Ball | Valve Seats | O-Rings | Connection Type | Fluid Porting |
|---|---|---|---|---|---|---|---|---|
| A075-NPK-SSKE-S70 | PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. | Polypropylene (Glass filled)Polypropylene (Glass filled) | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | Santoprene®Injection molded thermoplastic material with characteristics similar to EPDM. Has excellent abrasion resistance. | PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. | EPDMGeneral purpose elastomer with good resistance to many acids and basis. | NPT | Suction Right/Discharge Right (NPT/BSP Only)Suction Right/Discharge Right (NPT/BSP Only) |
| A075-NPK-TTKT-S70 | PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. | Polypropylene (Glass filled)Polypropylene (Glass filled) | PTFEThermoplastic material that is inert to most chemicals. | PTFEThermoplastic material that is inert to most chemicals. | PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. | PTFEThermoplastic material that is inert to most chemicals. | NPT | Suction Right/Discharge Right (NPT/BSP Only)Suction Right/Discharge Right (NPT/BSP Only) |
| A075-NPK-VVKV-S70 | PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. | Polypropylene (Glass filled)Polypropylene (Glass filled) | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | PVDFPolyvinylidene Fluoride suitable in applications requiring the highest purity, strength, and resistance to solvents, acids, bases. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | NPT | Suction Right/Discharge Right (NPT/BSP Only) |
3/4” A075 Conductive Nylon
Up to 17 GPM
Elastomer Available in: Geolast®, PTFE, Viton
Liquid Connections Available in: FNPT
Max Solids: 1/8 Inch (3.2mm)
Max Suction Lift (Dry): 15ft-H20 (4.5m)
Max Suction Lift (Wet): 26ft-H20 (7.9m)
Air Inlet: ¼ Inch FNPT
3/4” A075 Conductive Nylon
| Part No. | Fluid End | Air End | Diaphragms | Valve/Ball | Valve Seats | O-Rings | Connection Type | Fluid Porting |
|---|---|---|---|---|---|---|---|---|
| A075-NPY-GN3N-SF0 | Conductive Nylon Stainless Steel filled Nylon, suitable for most solvents and alcohols. | Polypropylene (Glass filled)Polypropylene (Glass filled) | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Geolast®Injection molded thermoplastic material with characteristics similar to Nitrile. Has excellent abrasion resistance. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | NitrileGeneral purpose elastomer used on water and most non synthetic oils. | NPT | Suction Right/Discharge Right (NPT/BSP Only)Suction Right/Discharge Right (NPT/BSP Only) |
| A075-NPY-TT3T-SF0 | Conductive Nylon Stainless Steel filled Nylon, suitable for most solvents and alcohols. | Polypropylene (Glass filled)Polypropylene (Glass filled) | PTFEThermoplastic material that is inert to most chemicals. | PTFEThermoplastic material that is inert to most chemicals. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | PTFEThermoplastic material that is inert to most chemicals. | NPT | Suction Right/Discharge Right (NPT/BSP Only)Suction Right/Discharge Right (NPT/BSP Only) |
| A075-NPY-VV3V-SF0 | Conductive Nylon Stainless Steel filled Nylon, suitable for most solvents and alcohols. | Polypropylene (Glass filled)Polypropylene (Glass filled) | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | Stainless SteelCorrosion Resistant Steel, suitable for nitric acid, chlorinated solvents, caustics and marine applications. | Viton®Elastomer with good chemical resistance to a wide variety of chemicals. | NPT | Suction Right/Discharge Right (NPT/BSP Only) |
